Product Range
Standard Rainbowlite Glazing now available in
Light Grey Acrylic!
Other colours:
light bronze, opal & clear
Rainbow Skylight is the leading specialist skylight manufacturing company in Southern Africa
Rainbow Skylight SA (Pty) Ltd is the leading specialist skylight manufacturing company in South Africa and the continent, providing natural lighting solutions to the architectural, commercial and residential industry. Established in 1987, Rainbow Skylight has earned its unrivalled position in the industry through an uncompromising commitment to producing premium quality products, excellent workmanship and efficient after-sales service.

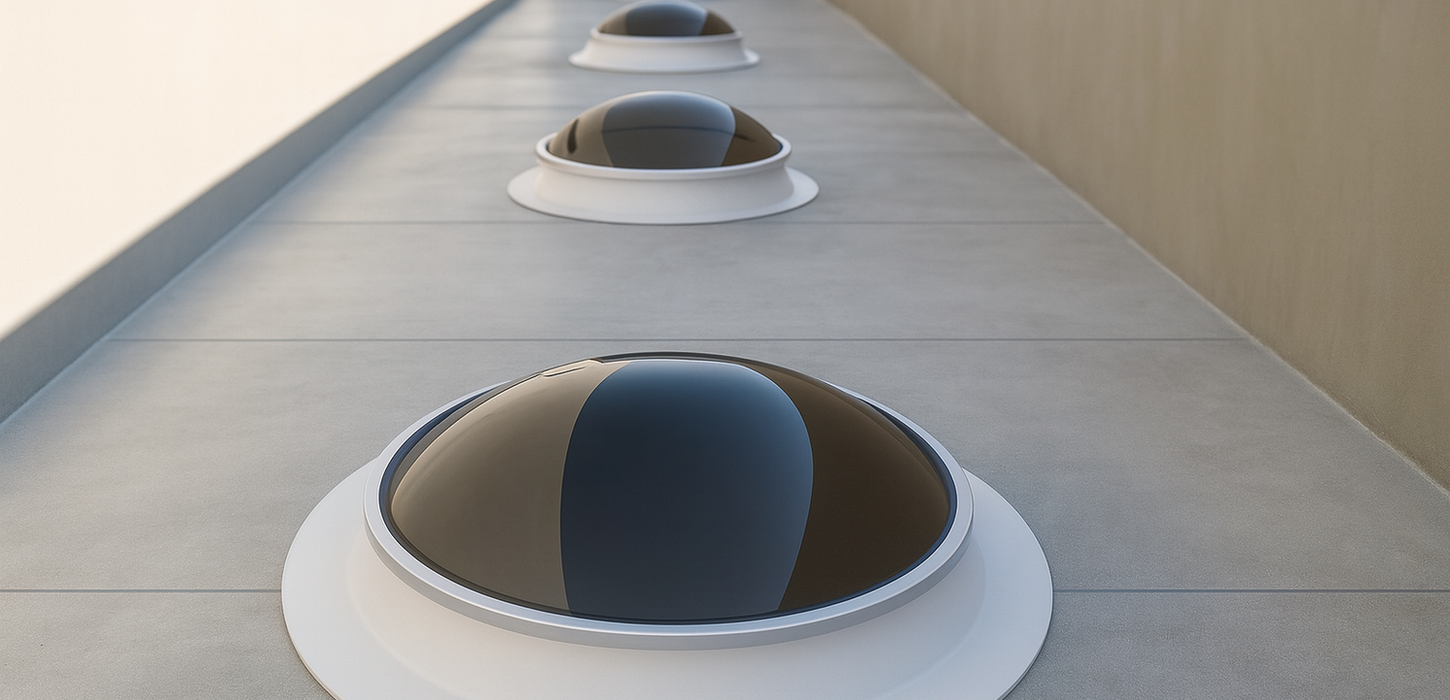

Standard Rainbowlite
Standard Rainbowlite in Acrylic / Polycarb or Glass
A standard range in a variety of shapes and sizes, with or without ventilation.
A Rainbowlite unit consists of a self-flashing aluminium frame, designed to fit onto any type of roof, available in mill finish or powder-coated. The glazed tops are available in domes, pyramids and flat glaze units with a choice of colours to allow solar energy control through various light.
Ventilation System (not available in round units)
-
Louvre Type - The ventilation system allows airflow through the skylight. Airflow can be permanent or controlled manually by a sliding aluminium shutter. Weather guard insect mesh is a standard.
-
Hinged Type - Is available with an electrical or manual opening mechanism. It is also available as an access hatch.
Download the Standard Rainbowlite technical brochure
Standard Rainbowvault
The Standard Rainbowvault are available in sizes bigger than the standard Rainbowlite units, allows the customer to use a fully assembled unit, easy to deliver and install. It is available with or without ventilation.
-
Base: The standard Rainbowvault unit consists of a self-flashing aluminium frame, designed to fit onto any type of roof, available in mill finish or powder-coated.
-
Glazing: The glazing system is an arch and clamp, completely leak proof and maintenance free. The glazing material, available in acrylic / polycarb or Multilight is available in a choice of colours to allow solar energy control through various light.
-
Ventilation System: The ventilation system fitted along the base frame of the gable end, allows airflow. It can be controlled or fixed.
-
Shapes Available: Semi-circle vault or Low rise vault.
Download the Standard Rainbowvault technical brochure
Customised Rainbowvault
The Customised Rainbowvault are available in any size, to cover any specified area. The glazing system can be self-supporting, spanning over the entire opening, or rest on an additional sub-structure.
-
Support Structure: The customised Rainbowvault can be designed to fit into any base line structure, such as steel, timber or masonry.
-
Glazing: The glazing system is an aluminium structural glazing bar to suit the spanning capability. The glazing material, available in acrylic / polycarb or Multilight is available in a choice of colours to allow solar energy control through various light (Glass is also available, see Rainbow Flush Glazed Glass Skylights).
-
Ventilation System: The ventilation system fitted on each gable end. It is available as a louvre or extractor fan.
-
Shapes Available: Low Rise, Mid Rise or Semi-Circle.
Download the Customised Rainbowvault technical brochure
Rainbow Bull Nose and Quarter Vault
The Rainbow Bull Nose & Quarter Vault are available in any size, to cover any specified area.
-
Support Structure: The Rainbow Bull Nose & Quarter Vault can be designed to fit into any base line structure, such as steel, timber or masonry.
-
Glazing: The glazing system is an aluminium structural arch to suit the spanning capability. The glazing material, available in acrylic / polycarb or Multilight is available in a choice of colours to allow solar energy control through various light.
Download the Bull Nose & Quarter Vault technical brochure
Rainbow Dome
The Rainbow Dome is available in any size, to cover any specified area.
-
Support Structure: The Rainbow Dome can be designed to fit into any base line structure, such as steel, timber or masonry.
-
Glazing: The glazing system is an aluminium structural arch to suit the spanning capability. The glazing material, available in acrylic / polycarb or Multilight is available in a choice of colours to allow solar energy control through various light (Glass is also available, see Rainbow Flush Glazed Glass Skylights).
Download the Rainbow Dome technical brochure
Rainbow Flush & Slope Glazed Skylights
The Customised Rainbow Flush Glazed Glass system is available in any size or shape, to cover any specified area. Applications available are Vault, Sloped Glaze, Pyramid, Ridge Pyramid and Dome.
-
Fixing Structure: The Rainbow Flush Glazed Glass system can be designed to fit into any base line structure, such as steel, timber or masonry. A steel gutter system can be incorporated over a large area, to create a continual drain & support system.
-
Glazing System: The glazing system is an aluminium or steel frame to suit the spanning capability. The frames finish is powder-coated to suit. High quality structural glazing silicon sealer is applied between the frame and the glass, providing a bond between the two as well as waterproofing the joints.
-
Glazing Material: This is available in PVB laminated safety glass in a choice of colours, to allow solar energy control through the various shading coefficients.
Download the Rainbow Flush Glazed Glass Skylights technical brochure
Rainbow Tubelite and Supertube
The Rainbow Tubelite and Supertube is a maintenance-free, leak-proof and dust-proof, top quality product. It has been specifically designed to provide a highly efficient, cost-effective and quick installation. Designed to withstand harsh weather conditions - it is UV-resistant and hail-resistant.
Advantages of the Rainbow Tubelite and Supertube
-
Cost and hassle reduces due to easy and quick installation.
-
No roof structural change needed.
-
The silver coating inside the tube intensifies and transmits light, even with a long and bent tube.
-
Can be installed in awkward places.
-
Available in kit form, or DIY with a step-by-step instruction manual.
-
Leak-proof and maintenance free.
-
Light performance: Up to 9m² (Tubelite) - 12m² (Supertube)
-
Flashing-trays designed to suit tiled, IBR, corrugated, Klip-Lok 700, Saflok 700, and generic roofs.
